Technical Specifications

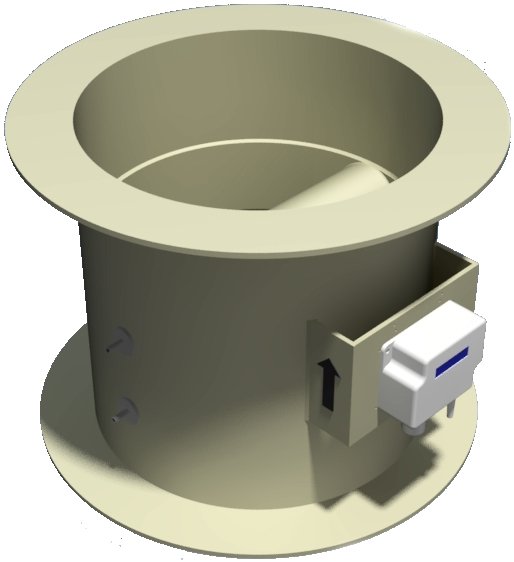

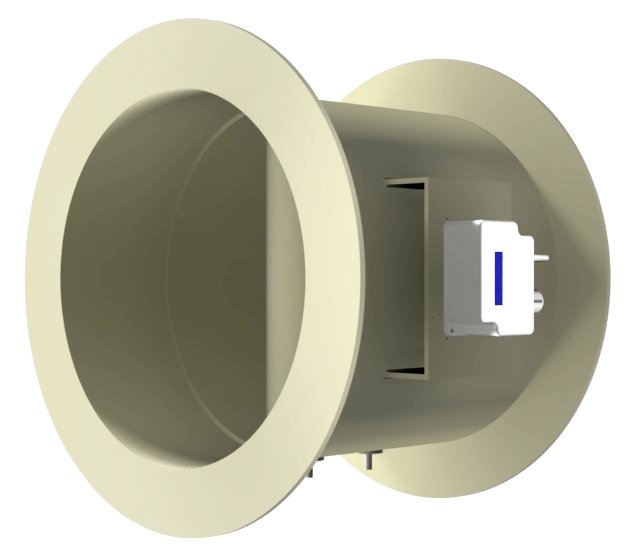

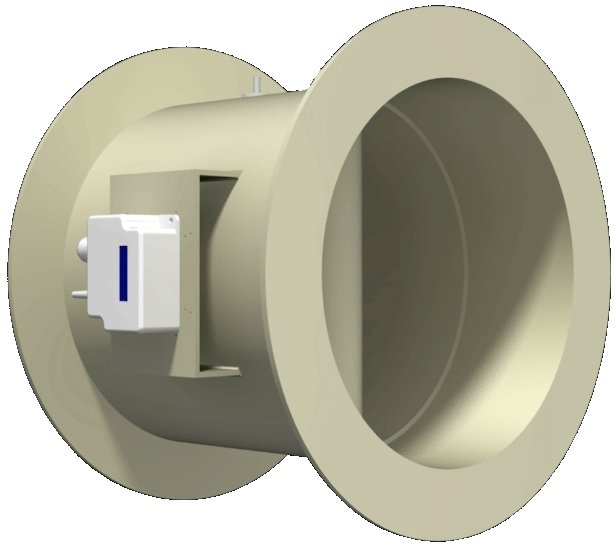

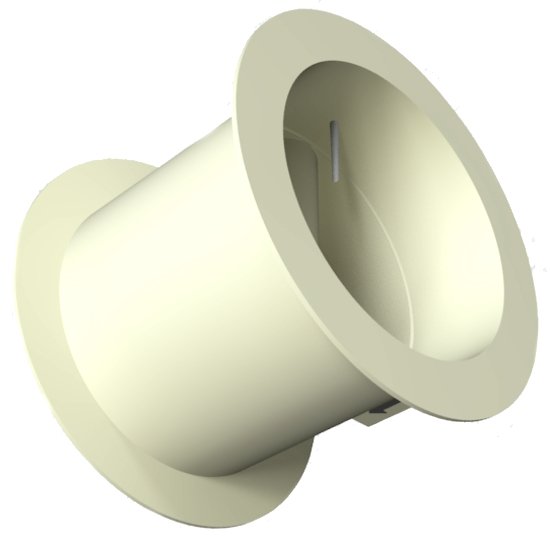

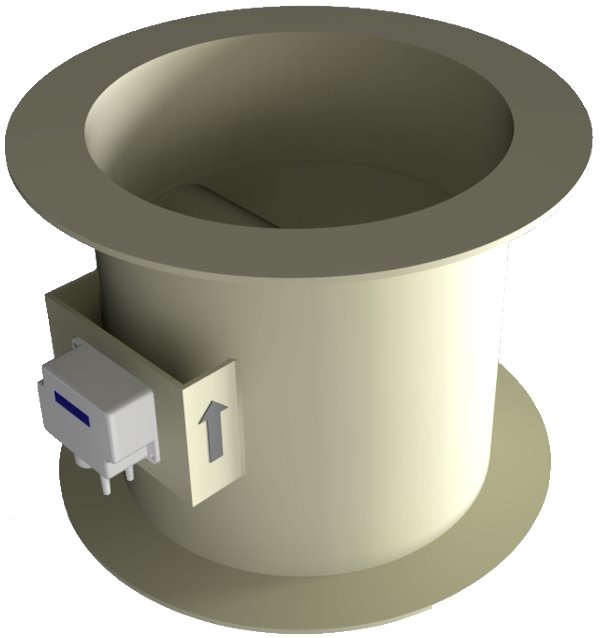

Microprocessor-Controlled Airflow Volume Measurement Device: This device is designed and produced for measuring the volume flows of fume hood exhaust air, laboratory supply air and room exhaust air in manifolded or clustered ducts. It is suitable for various high-speed and accurate measuring tasks, including fume hoods, enclosures, specialty chemical cabinets and other canopy exhaust air and supply units.

Technical features:

High Speed & Stable

Accurate Airflow Transmitter

Non Flow thru sensor type

Non Corrosive material PP UV Treated

Auto Zero Function (Optional)

Selectable units (m3/s, m3/h, cfm & l/s)

Analogue Outputs (V & mA)

230V 1 Ph. Power Supply

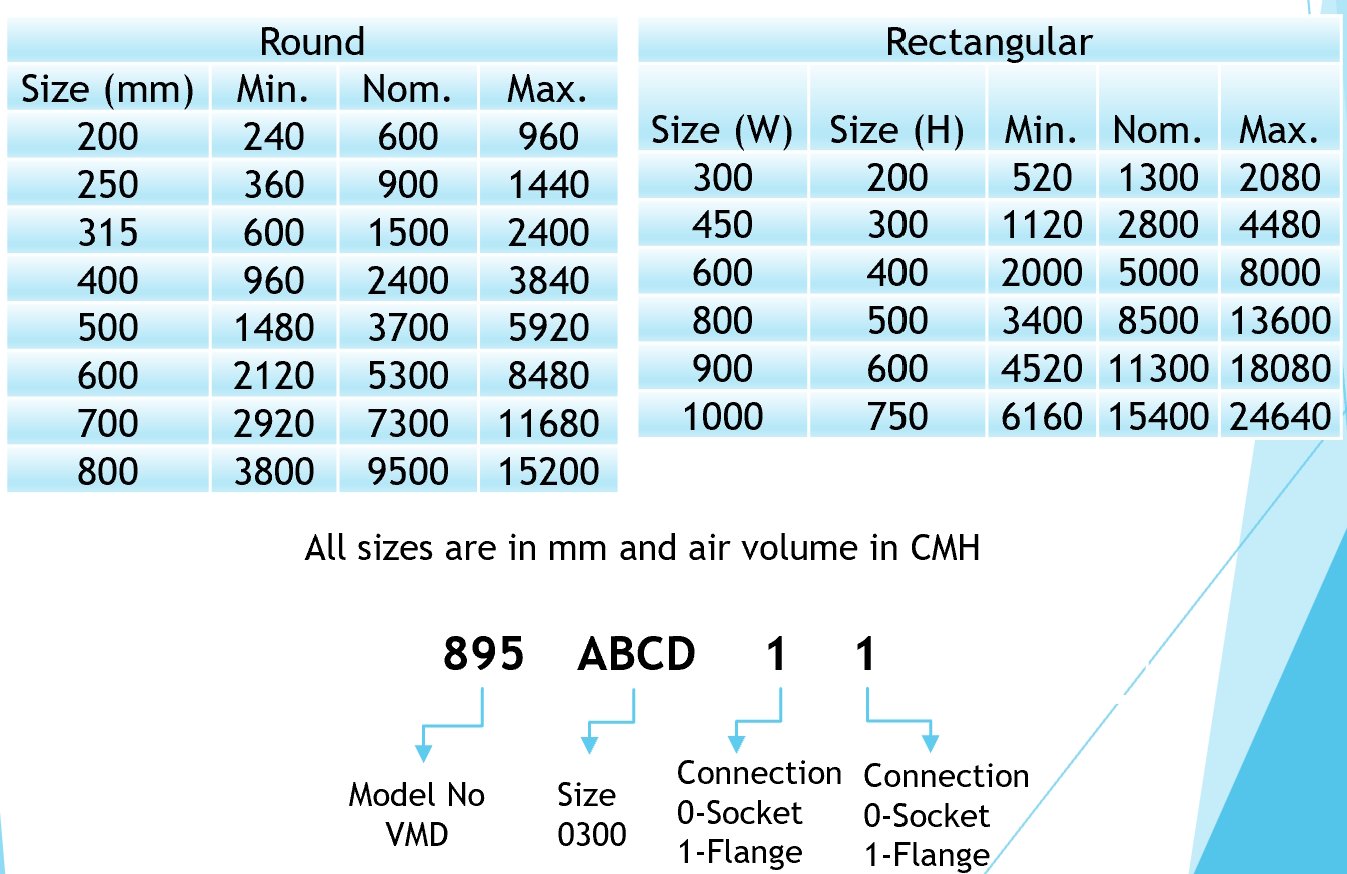

Wide Range Round 240 to 15,200 CMH

Wide Range Rectangular 520 to 24,650 CMH

Please ask for detailed catalog and O&M Manual at info@syannlab.com.
