Technical Specifications

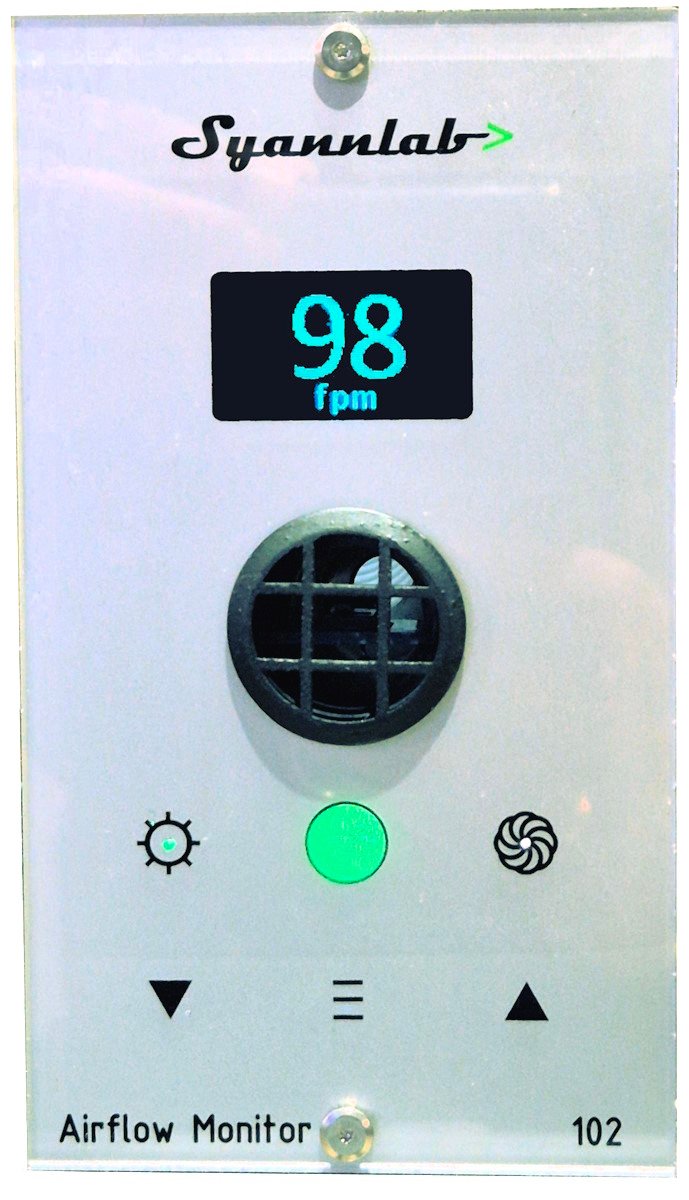

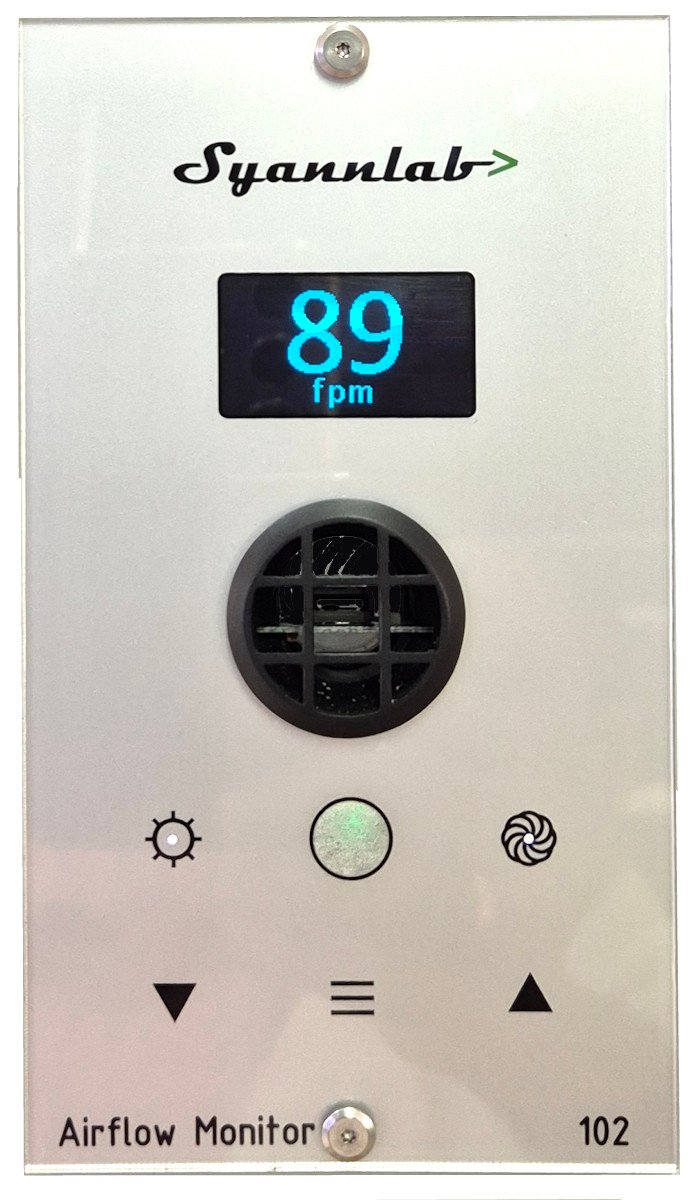

Microcontroller based face velocity measurement device with the unidirectional flow sensor, measurement against set point and indication of high or low value. Alert with audio visible alarm when out of range of velocity and for the reverse direction airflow. The device is with glass front and features touch buttons interface and relays for controlling light and exhaust fan contactor. The illuminated digital OLED display 1.3 inch shows the operating status and the face velocity as a numeric value in SI and Imperial system. .

Technical features:

ASHRAE 110-2016 Ready

Display – Illuminated OLED, 1.3inch

Visual Indication – Bright LED Green and Red

Audible Indication – 60dB sound level

Input – 5 capacitive touch button input for Menu, Mute, Up/Down, Light and Fan

Power supply – 230V AC power adaptor, Power usage – 24VDC 1A

Display unit – SI (MKS) & Imperial (FPS)

Measurement type – Directional type (inwards only)

Measurement range – 0 to 2 m/s (truncated)

Measurement list count – 0.01 m/s or 1 fpm

Velocity accuracy – 3% FS*

System repeatability – 3%*

Response time – 1 seconds (truncated)

Alarm silence – Temporary, programmable duration

Alarm repeat – Repeated alarm with programmable time

Calibration adviser – – 4000hrs preset, programmable & resettable

Touch Control – Light and Fan, On & Off thru contactor relay 1A

Communication – Digital NO NC for velocity fault

Communication – Velocity analogue output 0(2)-10V or 4-20mA optional

Buzzer volume – High & low user settable

Mounting – Semi flush, M3 screws

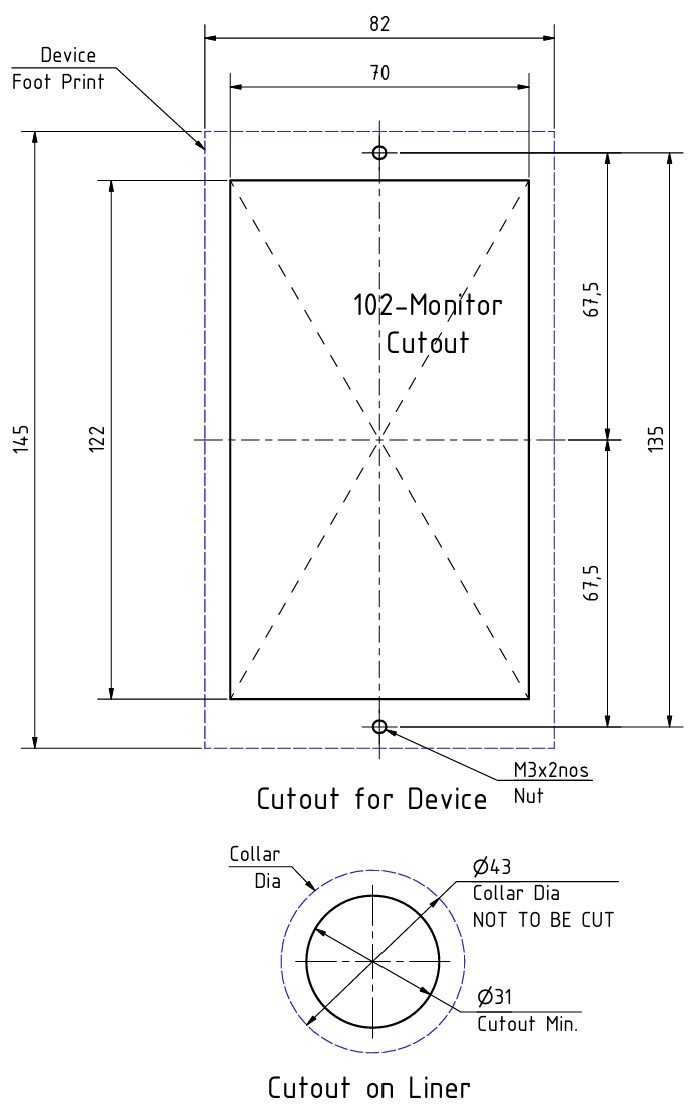

Size - please refer drawings

Operating temperature – 15°C to 40°C

Storage temperature – 10°C to 60°C

Operating Humidity – 25% to 75% RH

CE Certified

* As tested in laboratory and with calibration compensation

Please ask for detailed catalog and O&M Manual at info@syannlab.com.
